Product Introduction

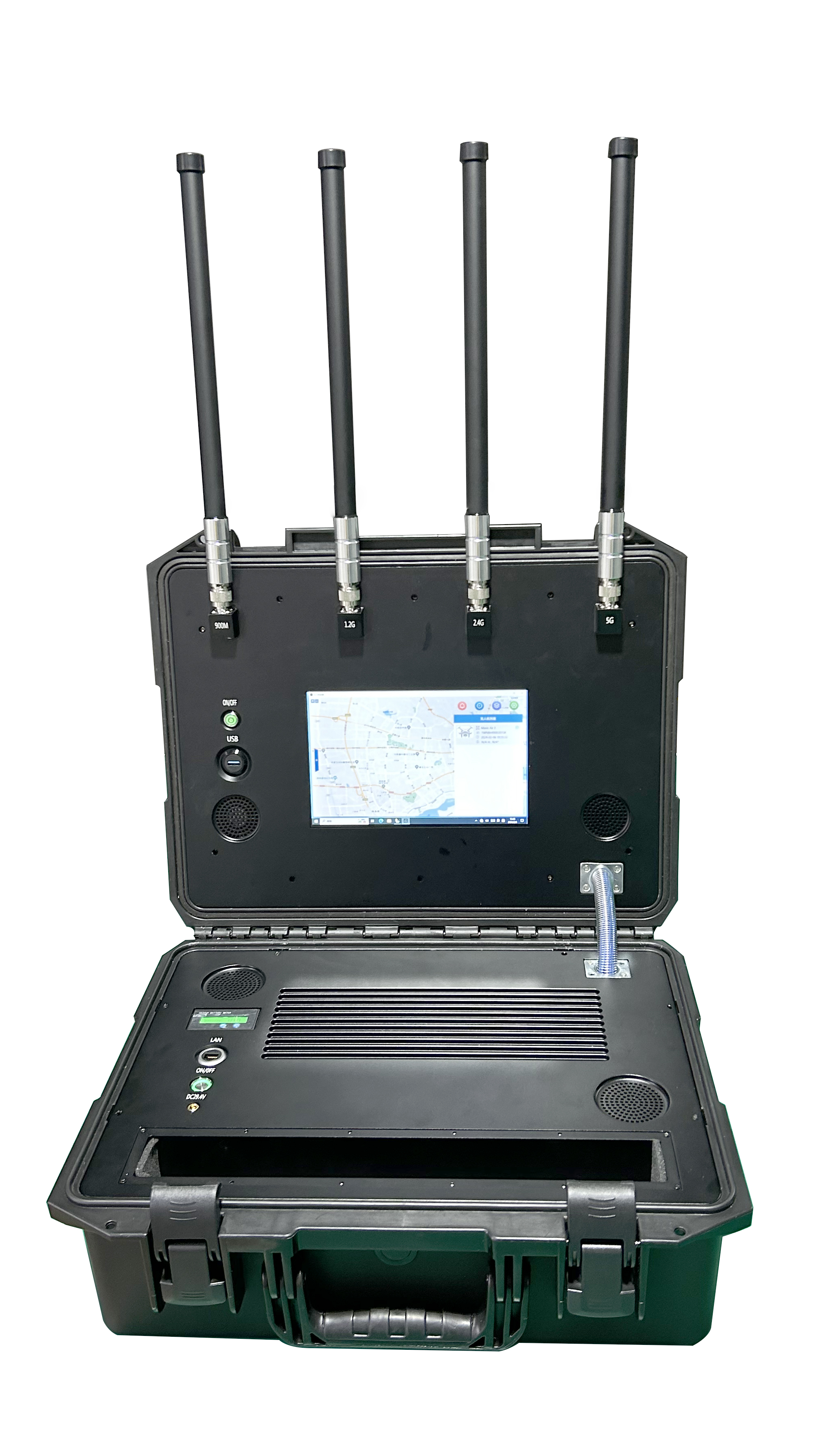

The AP2 portable drone detection device features a briefcase design with a high-capacity battery for extended operation. Equipped with a high-performance processor and advanced RF modules, it provides comprehensive coverage of various drone communication frequencies. Multiple detection methods include spectrum analysis, protocol parsing, data packet analysis, and AI technology, ensuring comprehensive and accurate detection.
Automated Counter-measures
Optional interference interface available for automatic drone control when connected to countermeasure devices.
Full Spectrum Coverage
Detection range covers 300-6000MHz, supporting 2.4G/5.8G and other mainstream drone communication bands, covering the majority of consumer drones and FPV drones in the market.
Rich Information Capture
For DJI O1, O2 transmission drones and drones supporting GB42590-2023, ASD-STAN prEN 4709-002, and ASTM F3411 standards, it captures extensive information including aircraft and operator coordinates, device ID, distance, altitude, aircraft orientation, flight trajectory, and blacklist/whitelist data.
Technical Specifications
| Detection Frequency | 300--6000MHz |
| Detection Range | 1-8km (environment dependent) |
| Coverage Area | 360° full coverage |
| Simultaneous Drone Detection | ≥ 20 drones |
| Simultaneous Trajectory Display | ≥ 5 drones |
| Interference Control Interface (Optional) | Configurable according to customer requirements, up to 12 channels |
| Positioning Accuracy | 10 meters |
| Operating Time | Approximately 4 hours (at 20°C) |
| Operating Temperature | -20 ~ 50°C |
| Dimensions | 514*418*203 |
| Weight | 16.8kg |
Application Scenarios
- Large Event Security
- Counter-terrorism and Security
- Emergency Response
- Urban Management
